- Article number
- 35974009

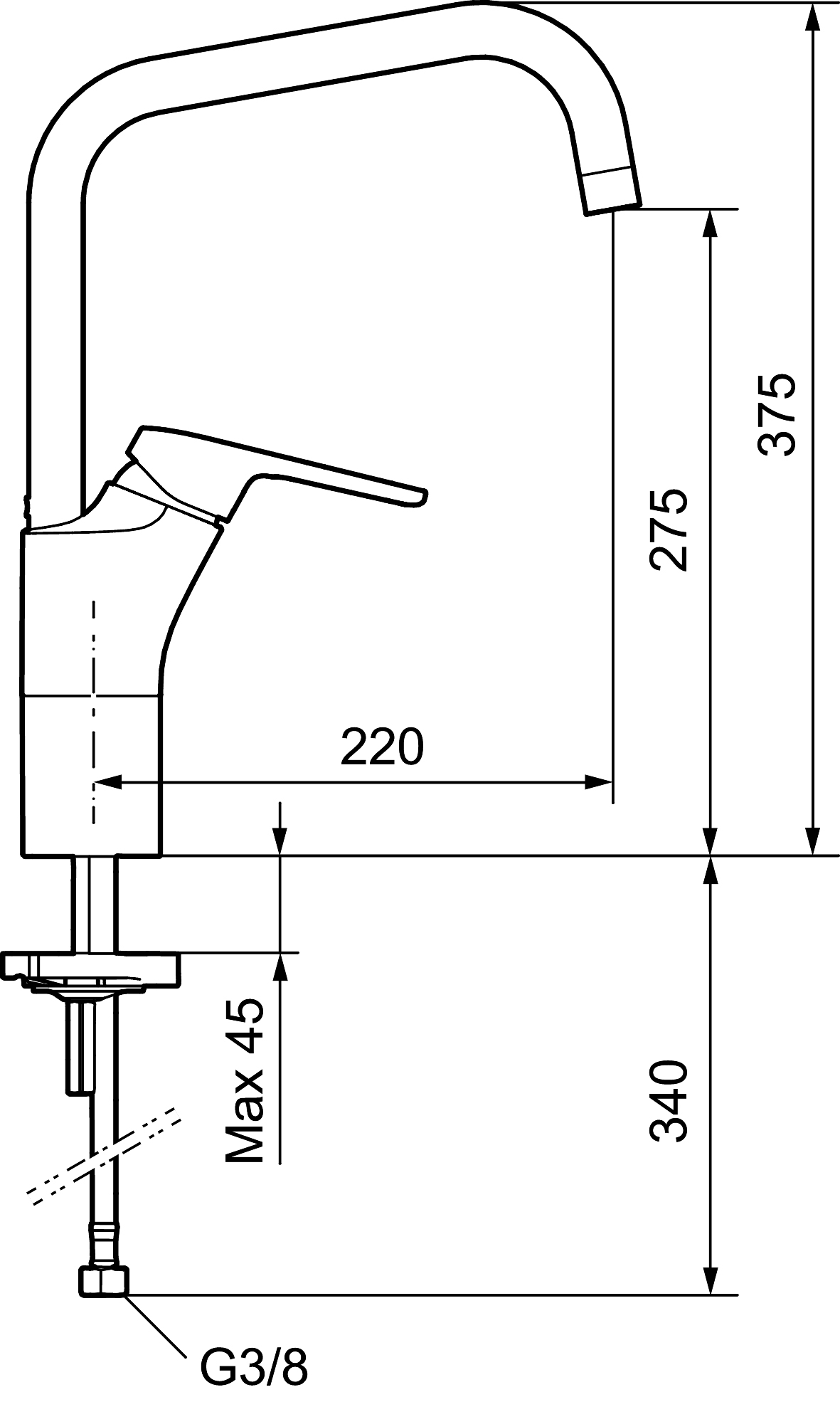

SILJAN kitchen mixer
PROPERTIES
- Cold Start
- Ceramic cartridge with soft closing function
- Adjustable flow control and temperature limiter
- Eco Flow (energy and water saving aerator)
- Swivel spout, limitation part for 60°, 85°, 110° or 360° included
- Soft PEX® hoses (stainless steel braided)
- Hole diameter Ø34-37 mm
-
Care-kit, Siljan
-
-
-
-
Aerator - Ball jointChrome, M22 int., 7–9 l/min at 300 kPa, for kitchen mixer with high spout
- Article number
- 29285009
No. | FMM No. | RSK | Description |
---|---|---|---|
44450009 | 8295353 | Accessories (limitation segment, stop screw, allen wrench 3 mm) | |
1 | 58501000 | 8592023 | Complete lever, chrome |
2 | 58511000 | 8592021 | Cover lid with colour marking |
3 | 58521000 | 8592020 | Cover sleeve, chrome |
4 | 58530140 | 8241726 | Fastening nipple with service tool |
5 | 60770000 | 8591918 | Service tool |
6 | 59115500 | 8591947 | Ceramic cartridge with service tool, standard (red ring) |
6 | S600273 | 8387230 | Ceramic cartridge with service tool, cold start (green ring) |
6 | 59120000 | 8591769 | Ceramic cartridge, cold start (green ring) |
6 | 59126000 | 8591966 | Ceramic cartridge with service tool, Eco Plus (green ring) |
6 | S600232 | Cartridge, Low flow, for LEED mixers | |
7 | 58641000 | 8594560 | Lock kit for swivel spout |
8 | 58650000 | 8186897 | Spout, chrome |
9 | 29142200 | 8281524 | Housing M22 int. |
10 | 29142400 | 8281526 | Housing M24 ext., 13 mm |
11 | 39140800 | 8186891 | Fastening kit for basin mixer |
12 | 39142800 | 8186893 | Fastening kit, for kitchen mixer with on/off valve |
13 | 39147000 | 8592050 | Stabilizer kit |
14 | 35974009 | 8592038 | Care-kit |
15 | 58504000 | 8592049 | Care-lever, complete |
16 | S600206 | 8233049 | Self-closing hand shower, chrome |
17 | 34093000 | 8186018 | Wall bracket, chrome |
18 | S600207 | 8236647 | Shower hose, L=1,5 m, chrome |
19 | 29390000 | 8295356 | Fastening nipple |
20 | 37801550 | 8295350 | O-ring 15,54 x 2,62, 2 pcs |
21 | 29102890 | 8281533 | Aerator insert, 10–13 l/min at 300kPa |
22 | 29100500 | 8281532 | Aerator insert, 5 l/min at 200–600 kPa |
22 | 29102710 | 8281528 | Aerator insert, 9–11 l/min at 300kPa |
22 | 29102910 | 8281534 | Aerator insert, 5,5–6,5 l/min at 300kPa |
22 | S600072 | 8281671 | Aerator insert, 3 l/min at 200–600 kPa |
23 | 29285009 | 8242280 | Aerator M22 int., ball joint, 7–9 l/min at 300 kPa |
modal.bvb.desc;
Accepted installation instructions
Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).
Leadfree
Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.
Energyclass
Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
