SILJAN bath mixer

In the FM Mattsson Siljan collection, strong focus has been placed on design. Soft, curved shapes are used consistently to create a coordinated look. This, along with our energy-saving functions and well-known high quality, makes them very popular with plumbers.

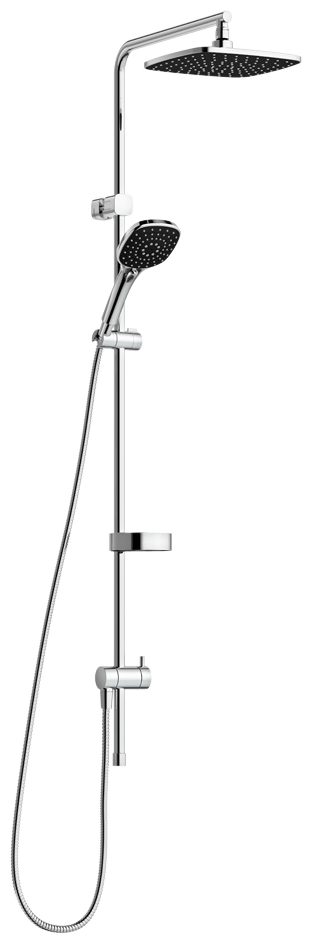

Also see our FM Mattsson Siljan shower and bath packages – smart all-in-one solutions with an overhead shower or hand shower set.

Find retailers
Description
Chrome, 160 c/c
Article number
83910000
EAN
7391887237904

PROPERTIES

  • Shower connection up and down
  • For head shower set with G1/2 connection
  • With reversible headwork
  • Pressure balanced thermostatic mixer
  • Swivel spout with built-in diverter
  • With ceramic sealed headwork
  • Temperature handle with safety stop at 38°C
  • With Eco-function
  • Approved non-return valves, EN-Standard EN1717
Backflow protection unit type EB
K Siljan Säkerhetsblandare 160cc och 150cc.jpg
No. FMM No. RSK Description
1 35480009 8592029 On/off handle, complete
2 39031500 8592052 End cover
3 35980009 8585850 Ceramic on/off headwork, reversible
4 38680009 8591701 Filter kit incl. o-rings and service tool
5 59800800 8592005 Inlet connectors, 160 c/c
5 59810800 8592006 Inlet connectors 150 c/c (left-handed thread)
6 S600275 8397029 Thermostatic cartridge, complete, incl. service tool
7 35480109 8592033 Temperature handle, complete
8 39710800 8591967 Nipple M18x1-G1/2 for shower mixer
9 39754000 8591969 Nipple M18x1 with o-ring for bath mixer
10 83990000 8154079 Swivel spout with integrated diverter
11 38086000 8439701 Locking screw
12 29142400 8281526 Housing M24 ext., 13 mm

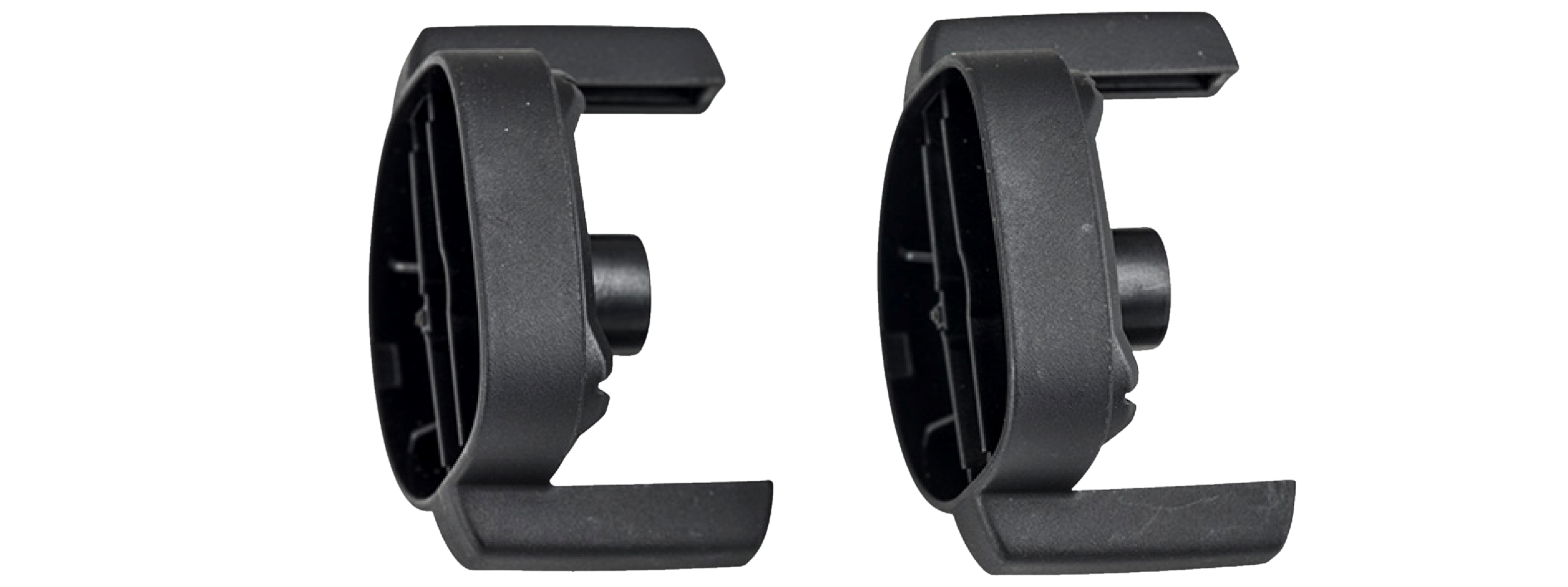

13 35976209 8592039 Care-handle, black, 2 pcs
14 38523000 8592058 Scalding protection ring
15 38531000 8592059 Stop ring, standard
15 38531040 8592060 Stop ring, reversible
16 38521000 8295345 Stop ring
17 39716000 Nipple M18x1
18 29102650 8281547 Aerator insert, 20–24 l/min at 300 kPa

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
