SILJAN head shower set

Our new FM Mattsson Siljan collection combines design with eco-friendly and energy-saving functions without compromising on comfort. The Siljan shower range includes a wide selection of overhead shower and hand shower sets.
The showers can be combined with a Siljan thermostatic shower or bath mixer. Or make things simple by choosing one of our smart all-in-one overhead or hand shower sets.
Description
Chrome
Article number
83920000
EAN
7391887238260
Flow 3 bar
10.7 l/m

PROPERTIES

  • Hand shower with 3 shower jet settings and diverter
  • Eco Flow, hand shower 7,5 l/min and head shower 11 l/min
  • Anti lime-scale head- and hand shower
  • With soap dish
  • Flexible wall bracket ±5 mm in height and 50–100 mm from wall, 2x18 mm spacers included, with sealing, hidden pipe joint
  • Shower pipe can be shortened if required

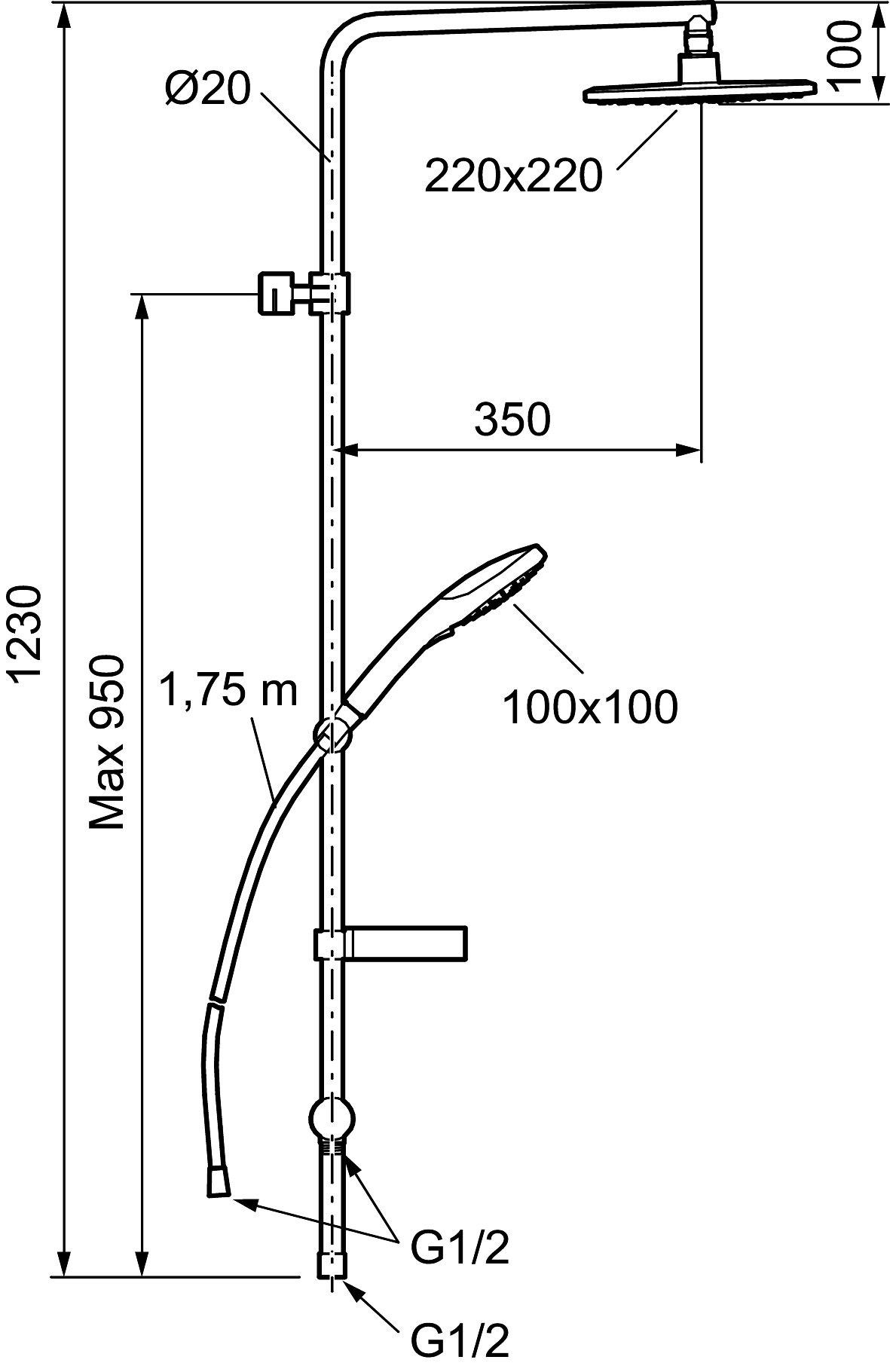

K Siljan Dusch.png
No. FMM No. RSK Description
1 83890000 8180620 Shower head
2 83753900 8199262 Hand shower
3 94782000 8185652 Slider
4 94712000 8186605 Wall bracket
5 94641000 8185653 Soap dish
6 94781000 8185651 Slider
7 34841750 8181618 Shower hose, chrome
8 83710000 8186586 Wall bracket, 2 pcs
9 58902000 8190734 Diverter, complete
10 59240000 8190735 Cartridge
11 27925000 8180419 Extender, 18 mm, 2 pcs
12 58943000 8217833 Upper bar
13 27930000 8221726 Joint
14 58931000 8217832 Lower bar
15 58921000 8217831 Extension bar
16 39391000 8221716 Distance ring for Ø18, Ø20 and Ø22 mm pipe
17 38080700 8295337 Stop screw M5x20

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
