9000E III kitchen mixer

An optimal fusion of design and function. The FM Mattsson 9000E range ushers in a new generation of mixers that are environmentally engineered down to the last detail. The mixer brings beauty and technical perfection to your kitchen. Even in its basic version, the mixer has unique functions that save energy without compromising on comfort.
Find retailers
Description
Chrome, connection flat end Ø10 mm
Article number
80200000
EAN
7319048020011
Flow 3 bar
7.4 l/m

PROPERTIES

  • Cold Start
  • Ceramic cartridge with soft closing function
  • Adjustable flow control and temperature limiter
  • Eco Flow (energy and water saving aerator)
  • Swivel spout, limitation part for 60°, 85°, 110° or 360° included
  • Soft PEX® hoses (stainless steel braided)
  • Hole diameter Ø34-37 mm
Backflow protection unit type AA

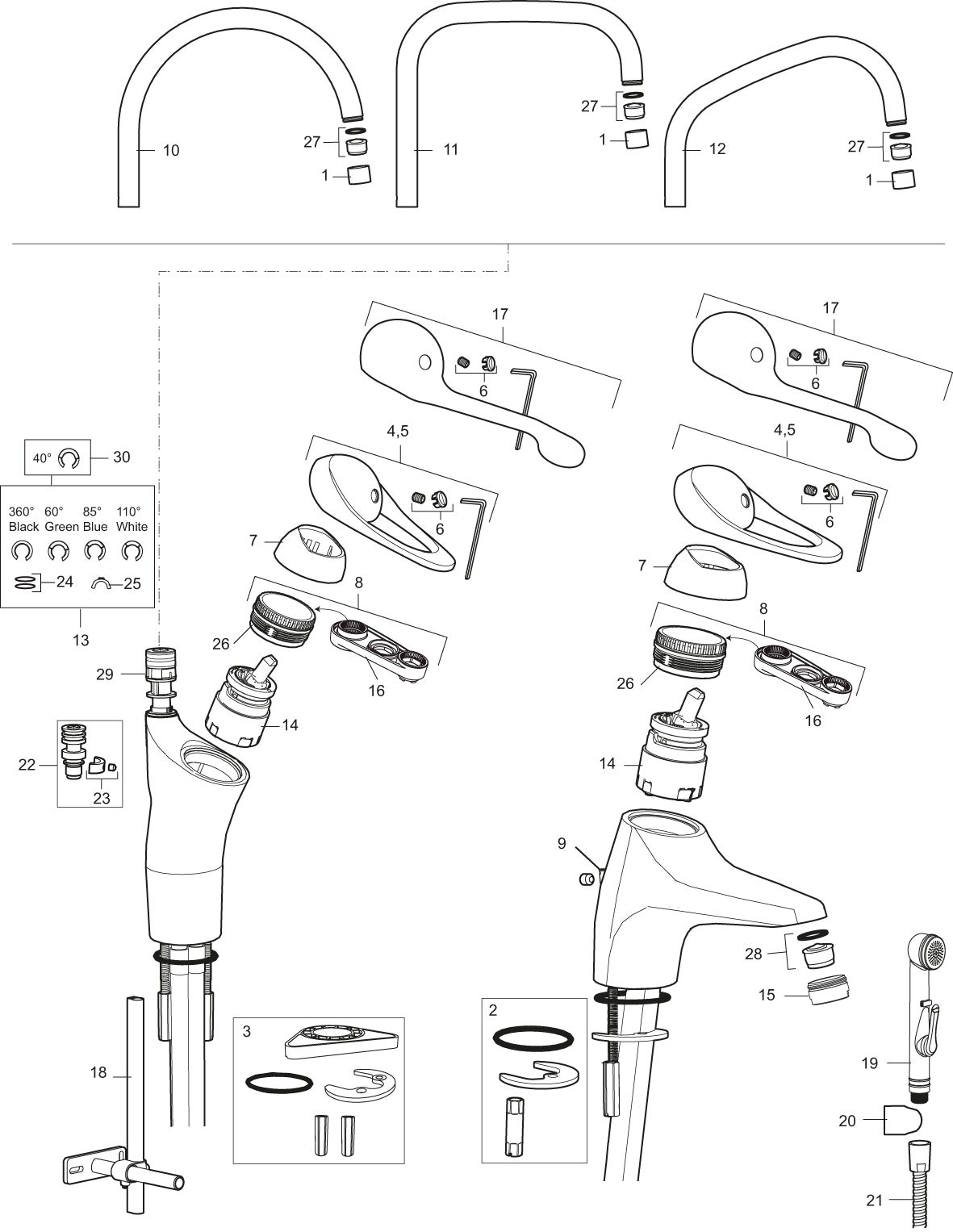

K 9000E Ettgreppsblandare utan DM.jpg
No. FMM No. RSK Description
1 29142200 8281524 Housing M22 int.
2 39140800 8186891 Fastening kit for basin mixer
3 39141800 Fastening kit, for kitchen mixer without on/off valve
4 58500000 8591936 Lever, complete, L=90 mm
5 58501750 8591937 Lever, complete, L=150 mm
6 58510000 8591944 Cover lid with colour marking
7 58520000 8591945 Cover sleeve
8 58530140 8241726 Fastening nipple with service tool
9 58540000 8591940 Chain bracket
10 58600000 8154074 Spout, C-model
10 58600200 Chrome
11 58610000 8154075 Spout, U-model
12 58620000 8154076 Chrome
13 58640000 8594555 Lock kit for swivel spout
14 59115500 8591947 Ceramic cartridge with service tool, standard (red ring)
14 59126000 8591966 Ceramic cartridge with service tool, Eco Plus (green ring)
14 S600273 8387230 Ceramic cartridge with service tool, cold start (green ring)
14 59120000 8591769 Ceramic cartridge, cold start (green ring)
15 29142400 8281526 Housing M24 ext., 13 mm
16 60770000 8591918 Service tool
17 58501800 8592048 Lever, complete, L=180 mm
18 39147000 8592050 Stabilizer kit
19 S600206 8233049 Self-closing hand shower, chrome
20 34093000 8186018 Wall bracket, chrome
21 S600207 8236647 Shower hose, L=1,5 m, chrome
22 37791000 8295341 Spout nipple, complete, for fixed spout
23 38081000 8295334 Stop screw with limitation segment
24 37801550 8295350 O-ring 15,54 x 2,62, 2 pcs
25 58642000 8295339 Fixed plug, 2 pcs, (black/grey)
26 29390000 8295356 Fastening nipple
27 29102290 8242220 Aerator insert, 7–9 l/min at 300kPa
27 29102890 8281533 Aerator insert, 10–13 l/min at 300kPa
28 29102910 8281534 Aerator insert, 5,5–6,5 l/min at 300kPa
28 29102710 8281528 Aerator insert, 9–11 l/min at 300kPa
28 29100500 8281532 Aerator insert, 5 l/min at 200–600 kPa
29 S600018 8394128 Spout nipple, complete
30 58644000 8594558 Limitation segment 40°

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
