GARDA IV kitchen mixer

Discontinued

Garda is a range of mixers with a clean, minimalist design. A Garda mixer enhances the overall interior of modern kitchens, and has our unique technical features including a soft-close mechanism and a ceramic seal. The spout is replaceable, so you can easily vary the mixer’s appearance according to your preference. The choice is yours.
Description

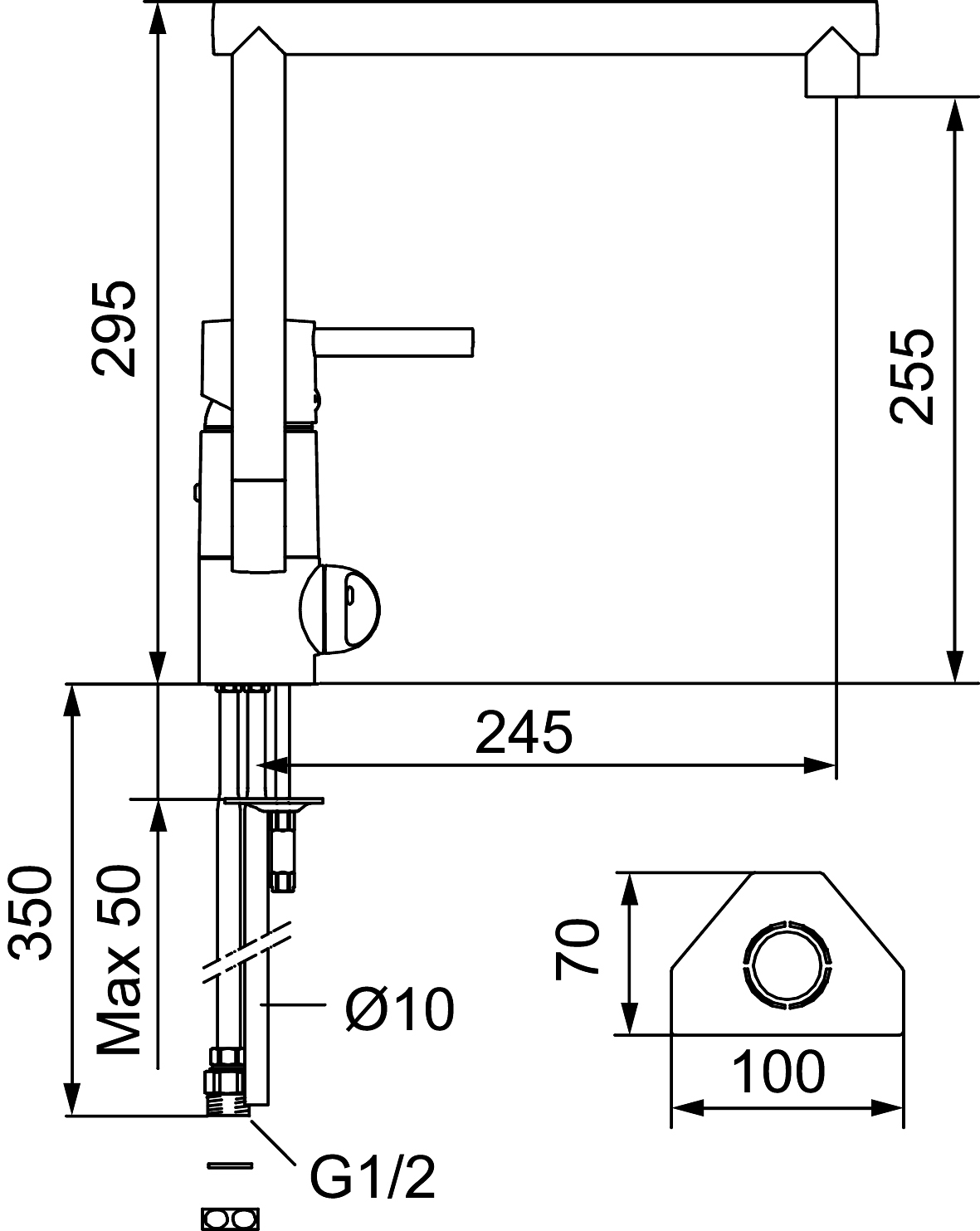

Chrome, with CU Ø10 mm
Article number
96310000
EAN
7319049631018

PROPERTIES

  • Ceramic cartridge with soft closing function
  • Adjustable flow control and temperature limiter
  • Eco Flow (energy and water saving aerator)
  • Swivel spout 110°
  • With dish washer valve, switchable between cold and hot water. Pre-set on cold water
  • Hole diameter Ø32-35 mm
Backflow protection unit type AA
K Garda Ettgreppsblandare med DM.jpg
No. FMM No. RSK Description
1 59400000 8591864 Lever, complete, L=95 mm
2 38731006 8591765 Lock screw
3 59410000 8591863 Cover lid with colour marking
4 59330000 8591829 Cover ring, chrome
5 38051000 8241719 Fastening nipple,chrome
6 59110000 8591770 Ceramic cartridge, not cold start (red ring)
7 59782000 8154090 Sleeve for spout with socket and stop screw
8 58640000 8594555 Lock kit for swivel spout
9 59700000 8154047 Spout for basin mixer with aerator and stop screw
10 59752200 8242199 Aerator M21,5 ext., 7–9 l/min at 300 kPa
11 38080000 8241723 Stop screw
12 59712500 8154083 Swivel spout for Garda I kitchen mixer, with aerator
13 59722500 8154085 Swivel spout for Garda II kitchen mixer, with aerator
14 59732500 8154087 Swivel spout for Garda III kitchen mixer, with aerator
15 59742500 8154089 Swivel spout for Garda IV kitchen mixer, with aerator
16 37731705 8242261 Diverter, ejector, Modell 2005-
17 37731005 8242259 Diverter, ejector
18 37204029 8593089 Sealing rings, 2 pcs
19 37802850 8141748 O-ring 42,2x3,0
20 39070016 8141755 Fastening plate for two screws
21 39141000 8186888 Fastening kit, for mixers without on/off valve
22 39142000 8186890 Fastening kit, for mixers with on/off valve
23 39100000 8591708 Connection pipes, CU 10x363, chrome (for basin mixer)
23 39100500 8591857 Connection pipes, CU 10x363, raw brass (for mixers with on/off valve)
23 39101000 8591859 Connecting Pipes , CU 10x363, chrome (for basin mixers)
23 39101500 8591858 Connection pipes, CU 10x392, raw brass (for mixers without on/off valve)
24 59050000 8591875 On/off valve for dishwasher, complete, chrome
25 59271000 8591843 Ceramic cartridge for dishwasher
26 59060000 8591876 Knob for dishwasher, chrome
27 59712000 8154082 Swivel spout for Garda I kitchen mixer, with aerator
28 59722000 8154084 Swivel spout for Garda II kitchen mixer, with aerator
29 59732000 8154086 Swivel spout for Garda III kitchen mixer, with aerator
30 59742000 8154088 Swivel spout for Garda IV kitchen mixer, with aerator
31 60841000 8591891 Key for aerator M21,5 x 1
32 S600206 8233049 Self-closing hand shower, chrome
33 34093000 8186018 Wall bracket, chrome
34 S600207 8236647 Shower hose, L=1,5 m, chrome
35 37801158 8594540 O-ring 10,1 x 1,6, 2 pcs
36 37801550 8295350 O-ring 15,54 x 2,62, 2 pcs
37 58642000 8295339 Fixed plug, 2 pcs, (black/grey)

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
