FM Mattsson tronic shower panel WMS, for premixed water, battery operation

Find retailers
Description
Matte white, battery operation, included battery
Article number
95000702
EAN
7391887264344

PROPERTIES

  • Shower panel with possibilities of wireless connection (subscription is required)
  • With hand shower and hose
  • With mixing valve
  • Battery operation, can be converted to mains operation

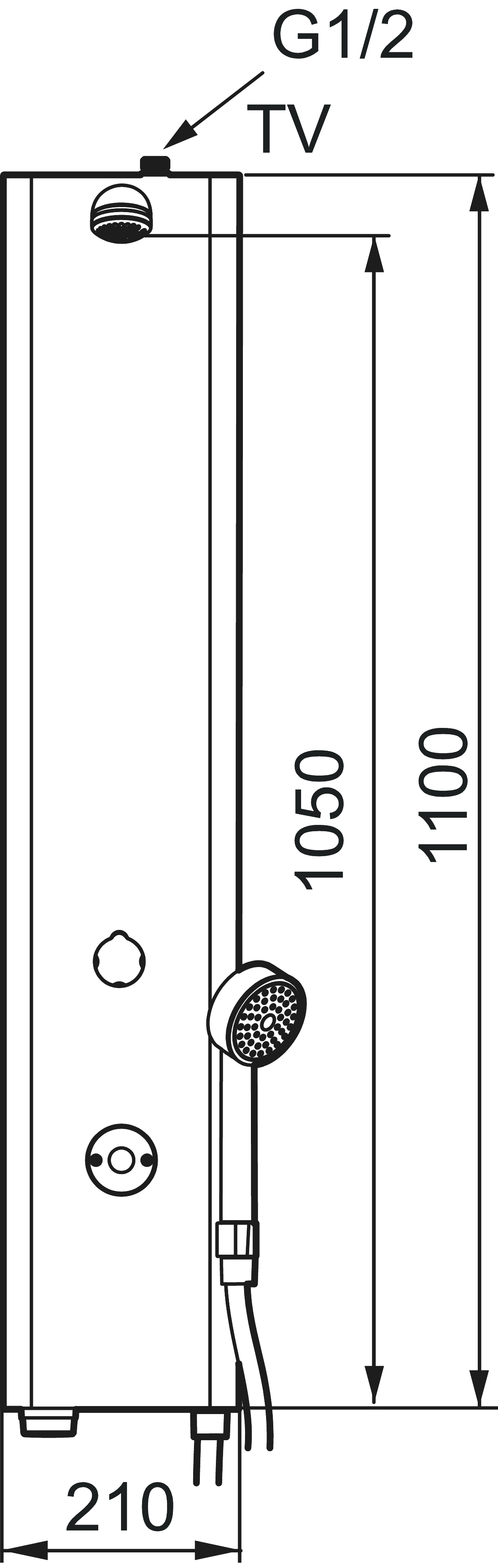

  • Connection up G1/2". Ball valve are ordered seperately
  • With solenoid valve
  • Programmable start button. Rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Flush Timeout - safety shut-off to prevent flooding, maximum of 5 minutes
  • Jet angle adjustable +/- 5°
  • Flow limiter 9 l/min
  • Can be turned off by solenoid valve (eg for cleaning)
  • Stainless steel design with powder-coated casing. Standard colour white NCS S0500-N, Gloss 30, other colours and gloss levels available on request.
  • Low power consumption - Long life
  • Equipped with system for thermal disinfection against legionella
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717

    Installation:
  • Easy to change battery under the service cover without turning off the water supply
  • Mains operation requires installation of the AC adapter FMM S600132 power supply FMM S600129 alternatively transformer FMM S600128, plus extension cable FMM S600127

    Tronic WMS:
  • Note! Gateway and subscription or dongle are required for the WMS function
  • The following options are available with wireless connection to our Tronic WMS system:
  • Programmable rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Selection of activation type:
    - Saving mode, set time, always flush at the same time, factory preset mode
    - Normal, rinsing time is extended if you press again before it stops
    - Switching mode, set time, reactivation interrupts flushing
  • Adjustable hygiene flushing, interval and rinsing time (in order to prevent stagnant water)
  • Logging of all flushings with point of time, water consumption and temperature for individual mixer or group of mixers (minimum, maximum and average values)
  • Battery monitoring
  • Built-in temperature measurements of mixed water temperature
  • Programmable temperature stop, the mixer will turn off directly at set maximum temperature
  • Initiate hot water rinsing
Backflow protection unit type EB
K Tronic duschpanel WMS.jpg
No. FMM No. RSK Description
1 29182000 8221808 Shower strainer
2 39090700 8221813 Connection hose, 0,7 m
3 59072000 8221814 Cartridge for diverter
4 16221700 8221796 Handle for diverter
5 38607000 8591963 Thermostatic cartridge, complete, incl. service tool
6 S600222 8239545 Temperature handle, complete
7 16222600 8438816 Cover plug for battery, black
8 34831750 8221810 Shower hose, 1,75 m
9 94760900 8221816 Hand shower
10 29900600 8224321 Flow limiter, constant flow 6 l/min at 200–600 kPa
10 29900900 8221809 Flow limiter,constant flow 9 l/min at 200–600 kPa
10 29901200 8224320 Flow limiter, constant flow 12 l/min at 200–600 kPa
11 16216500 8438815 Electronic unit
12 S600135 8483191 Battery
13 S600132 8438826 AC adapter
14 16202000 8221794 Solenoid valve
15 39090000 8221812 Hose kit, connection behind
16 S600025 8221869 Shower head, complete
17 409364.AE 8346506 Scalding protection ring, (max 42 °C)

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
