9000XE bath mixer

9000XE bath tub mixer is a mixer in brushed chrome with carefully balanced pressure and temperature regulation, low weight, and noise absorbing as well as energy-saving functions. It is also equipped with double check valves for added safety.

Find retailers
Description
Brushed chrome, 160 c/c
Article number
86900003
EAN
7391887260759
Flow 3 bar
22.7 l/m

PROPERTIES

  • Pressure balanced thermostatic mixer
  • Swivel spout with built-in diverter
  • With ceramic sealed headwork
  • Temperature handle with safety stop at 38°C
  • With Eco-function
  • Lead Free material
  • Approved non-return valves, EN-Standard EN1717
Backflow protection unit type EB
K 9000XE sakerhetsblandare 160cc och 150cc.png
No. FMM No. RSK Description
1 S600083 8218917 On/off handle, complete, krom
1 S600083.75 8218919 On/off handle, complete, brushed chrome
2 S600116 8218920 End cover, chrome
2 S600116.75 8218922 End cover, brushed chrome
3 S600082 8218914 Temperature handle, complete, chrome
3 S600082.75 8218916 Temperature handle, complete, brushed chrome
4 S600020 8441462 Ceramic headwork, with service tool (shower mixer)
4 S600269 8387232 Ceramic headwork, without tool (shower mixer)
4 S600021 8441463 Ceramic headwork, with service tool (bath mixer)
4 S600270 8387233 Ceramic headwork, without tool (bath mixer)
5 S600086 8439710 Stop ring, standard
6 S600087 8439711 Scalding protection ring
6 S600026 8439708 Scalding protection ring, max 42 °C
7 S600084 8439709 Thermostatic cartridge, complete, incl. service tool
7 S600271 8397030 Thermostatic cartridge, complete, without service tool
8 S600088 8439712 Nipple M18x1–G1/2 for shower mixer
9 39754000 8591969 Nipple M18x1 with o-ring for bath mixer

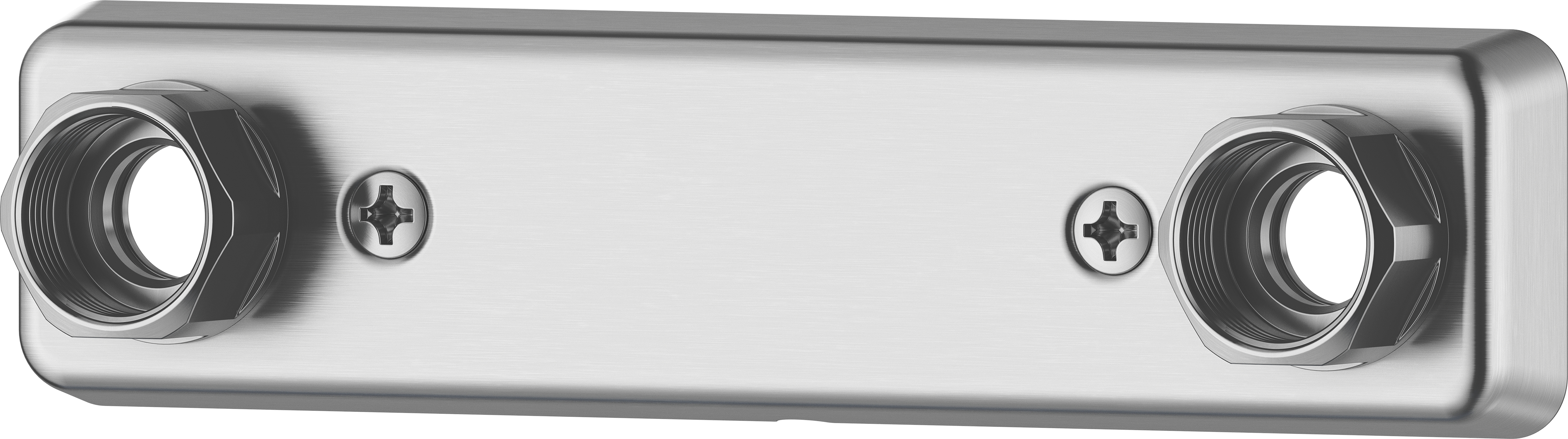

10 59800800 8592005 Inlet connectors, 160 c/c
11 38632006 8590311 Filter
12 S600077 8241000 Swivel spout with integrated diverter, chrome
12 S600077.75 8357750 Swivel spout with integrated diverter, brushed chrome
13 38521000 8295345 Stop ring
14 38086000 8439701 Locking screw
15 S600105 8439713 Care-handle, black, 2 pcs

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
