9000 concealed thermostatic mixer
- Description
- Chrome
- Article number
- 92300000
- GTIN
- 7319049230013
PROPERTIES
- Pressure balanced thermostatic mixer
- With approved non-return valves
- For installation in worktop/bath (max. material thickness 12 mm)
- Temperature handle with safety stop at 38°C
- Approved non-return valves, EN-Standard EN1717
- Enclosure dimensions (with nipples):
Depth: 82 mm
Height: 100 mm
Width: 45 mm

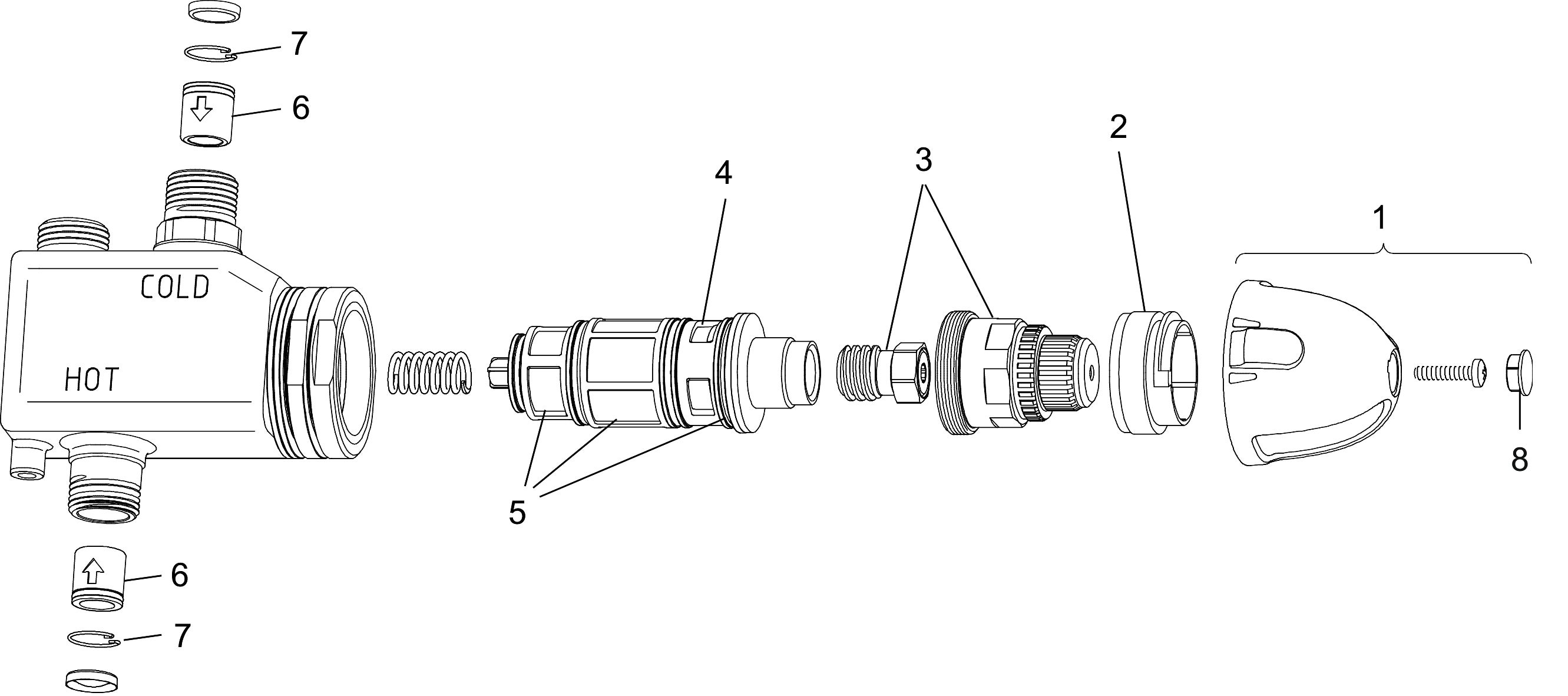

| No. | FMM No. | RSK | Description |
|---|---|---|---|
| 1 | 35940009 | 8591551 | Temperature handle, chrome |
| 2 | 38520007 | 8591592 | Scalding protection ring, standard (black) |
| 3 | 38663005 | 8591856 | Headwork incl. spindle screw |
| 4 | S600275 | 8397029 | Thermostatic cartridge, complete, incl. service tool |
| 5 | 38680009 | 8591701 | Filter kit incl. o-rings and service tool |
| 7 | 37120000 | 8295342 | Locking ring |
| 8 | 39030000 | 8295347 | End cover, chrome, 2 pcs |
DOCUMENTS
modal.bvb.desc;
Accepted installation instructions
Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).
Leadfree
Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.
Energyclass
Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
